Dimensions 153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56″)
Weight 250 g (8.82 oz)
Enclosure material UV-stabilized polycarbonate

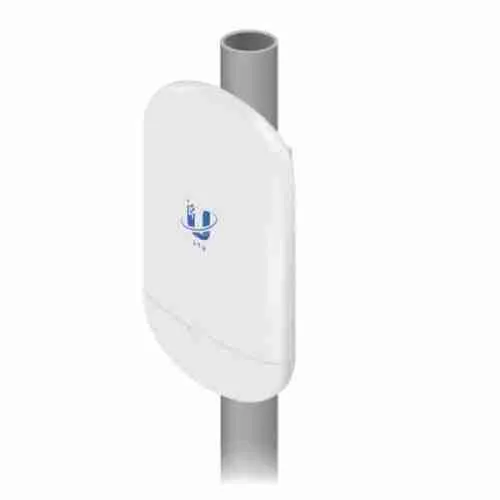

Mounting Pole mount, wall mount (Kit included)
Wind survivability 200 km/h (125 mph)
Wind loading 20 N at 200 km/h (4.5 lbf at 125 mph)
Hardware
Networking interface (1) 10/100/1000 MbE RJ45 port
Power method 24V passive PoE (Pairs 4, 5+; 7, 8- )
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range 22—26V
Max. power consumption 8.5W
ESD/EMP protection Air/contact: ± 24kV
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% non-condensing
Certifications CE, FCC, IC
Software
OS airOS®
Modes PtMP CPE only
Management interface Bluetooth management for easy setup over UISP App
WEB UI
Minimum software requirements Any modern web browser/iOS™ or Android™ based smartphone
System
Maximum throughput 900+ Mbps*
*FW version 2.3.0 and later.
RF
Operating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
EU
Worldwide
5150 – 5250 MHz
5250 – 5350 MHz
5470 – 5725 MHz
5725 – 5850 MHz
2400 – 2483.5 MHz
5150 – 5875 MHz
2400 – 2483.5 MHz
4800 – 6200 MHz
*Depends on regulatory region.
Max. conducted TX power 22 dBm (per chain)
Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later.
Antenna gain 13 dBi
Cross-pol isolation 20 dB
Max. VSWR 1.8:1
Beamwidth HPOL/VPOL/elevation: 45°
Polarization Dual linear
LEDs
System Flashing white: bootup in progress
White: ready for use, not connected to the UISP application
Flashing blue: locate in progress
Blue: connected to the UISP application
Blue/white: firmware upgrade in progress
