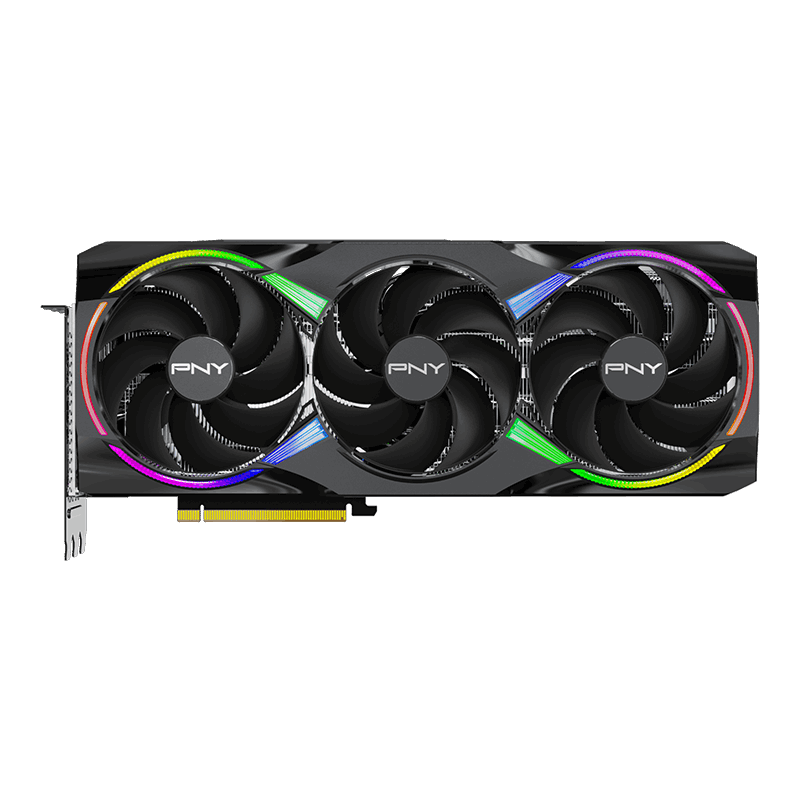

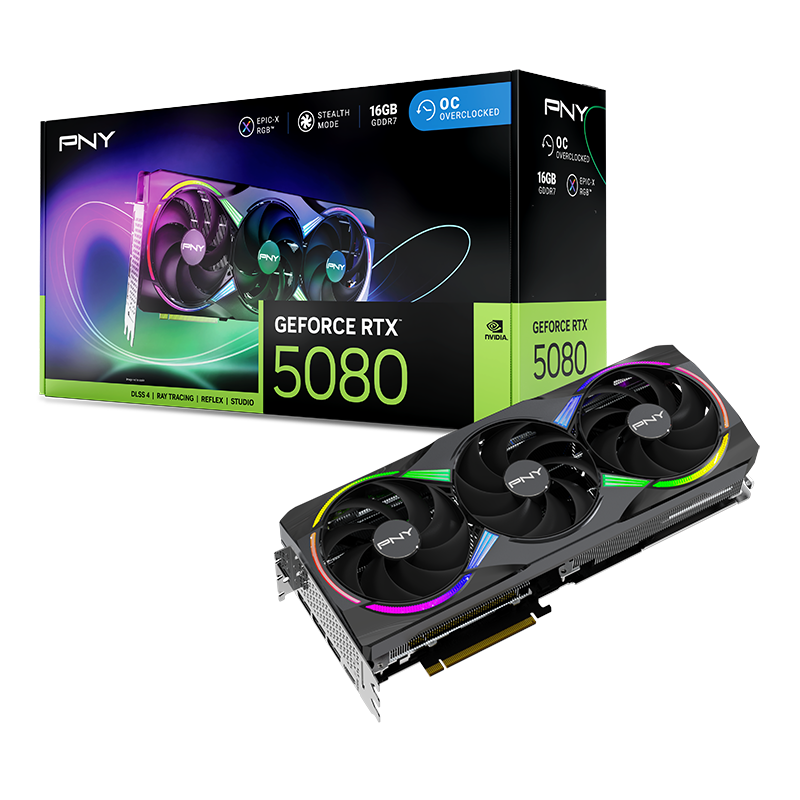

PNY GeForce RTX 5080 ARGB Overclocked Triple Fan GPU

GPU

• CUDA cores: 10,752
• Base clock: 2,295MHz
• Boost clock: Up to 2,775MHz
• AI performance: Up to approximately 1,801 AI TOPS
• Ray-tracing cores: 84, fourth generation
• Tensor cores: 336, fifth generation
• Real-time ray tracing

Memory

• Memory capacity: 16GB
• Memory type: GDDR7
• Memory interface: 256-bit
• Memory speed: 30Gbps
• Memory bandwidth: Up to 960GB/s
• Suitable for demanding 4K gaming, 3D rendering, AI-assisted creative applications and GPU-accelerated workloads.

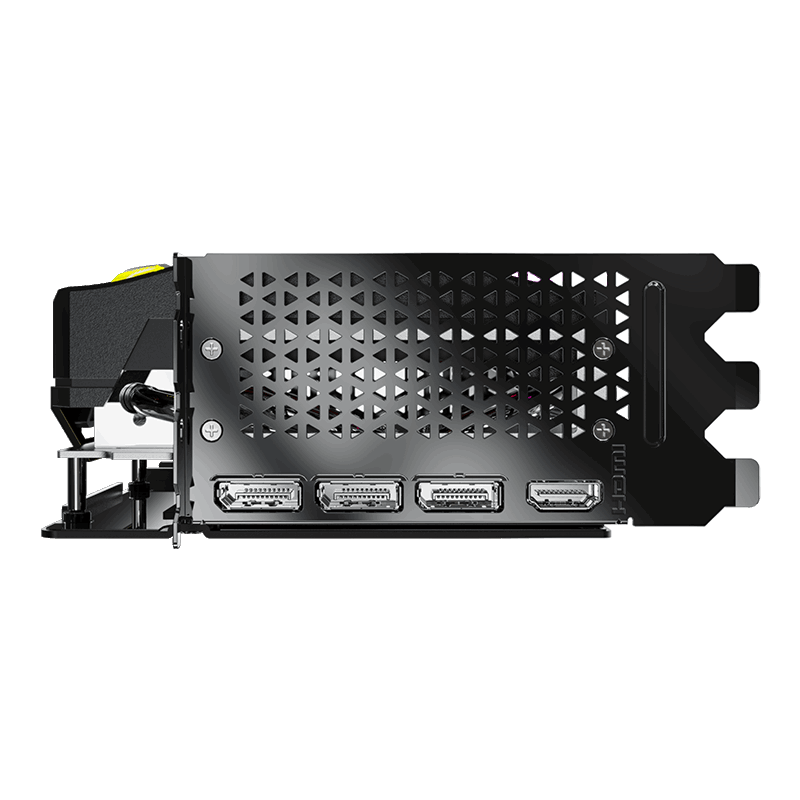

Display Outputs

• 3 × DisplayPort 2.1b with UHBR20
• 1 × HDMI 2.1b
• Maximum displays: Up to 4
• Maximum supported resolution:
  • Up to 4K at 480Hz with DSC
  • Up to 8K at 165Hz with DSC

Power Requirements

• Total graphics power / TDP: 360W
• Power connector: 1 × 16-pin PCIe power connector (12V‑2×6 / 12VHPWR compatible)
• Included adapter: 1 × 16-pin to 3 × 8-pin PCIe power adapter
• Recommended power supply: 850W

Physical Specifications

• Length: 328.7mm
• Height: Approximately 137.7mm
• Thickness: Approximately 59.7mm
• Required expansion space: 3 slots
