PNY GeForce RTX 5060 Dual Fan GPU

General

• Brand: PNY
• Model: GeForce RTX 5060 8GB Dual Fan
• PNY part number: VCG50608DFXPB1

GPU

• Graphics processor: NVIDIA GeForce RTX 5060
• CUDA cores: 3,840
• Base clock: 2,280MHz
• Boost clock: Up to 2,497MHz

Memory

• Video memory: 8GB
• Memory type: GDDR7
• Memory interface: 128-bit
• Memory speed: 28Gbps
• Memory bandwidth: 448GB/s

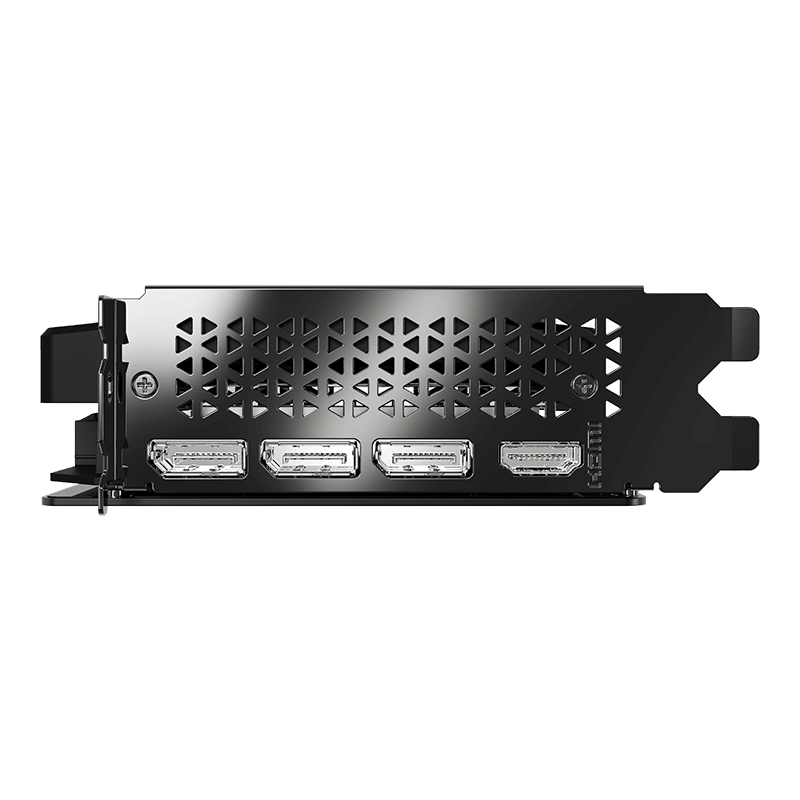

Display Outputs

• 3 × DisplayPort 2.1b with UHBR20
• 1 × HDMI 2.1b

Power Requirements

• Total graphics power / TDP: 145W
• Power connector: 1 × 8-pin PCIe power connector
• Recommended system power supply: 550W minimum
• A quality 650W PSU is recommended if the PC uses a high-power CPU, many drives, or several accessories.

Physical Specifications

• Dimensions: 200 × 120 × 40mm
• Length: 200mm
• Height: 120mm
• Thickness: Approximately 40mm
