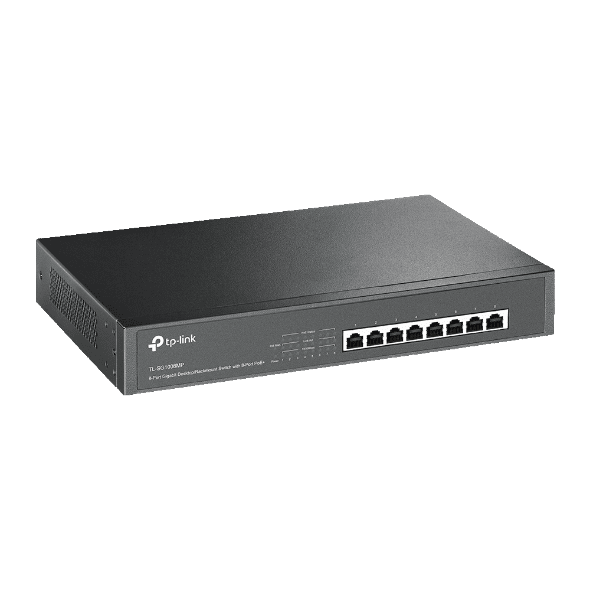

Tp Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
€125.00
8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power consumption
Supports PoE+ standard with total power budget of 153W* and up to 30W per port
Plug and play design, no configuration required
HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Packet Forwarding Rate 11.904 Mpps
PoE+ Ports(RJ45) Standard: 802.3af/at compliant
PoE+ Ports: 8 Ports
Power Supply: 153W
Mac Address Table 4K
Buffer Size 1.5Mbits
Jumbo Frame 16 KB
Switching Capacity 16Gbps
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Desktop/Rack Mountable
Max Power Consumption 8.57W(220V/50Hz. no PD connected)
173.65W(110V/60Hz. with 153W PD connected)
Max Heat Dissipation 29.22BTU/h(no PD connected)
592.15BTU/h(with 153W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Environment Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
